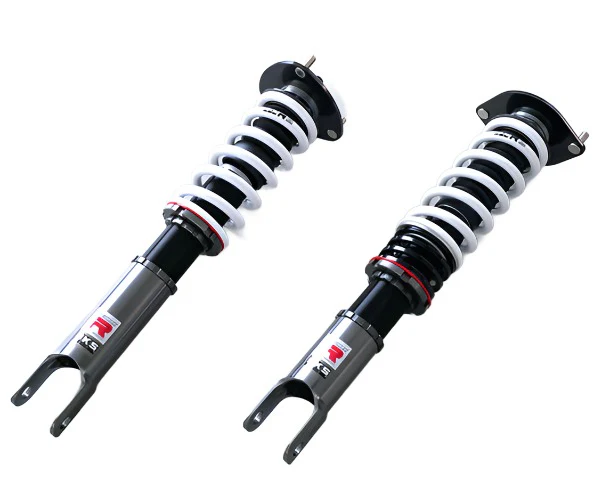

HKS Hipermax R Coilovers Mazda Miata MX5 ND (2016-2019) 80310-AZ002
Image is only a representation. Actual design will be vehicle specific
Fitment Information
- Mazda Miata MX5 ND (2016, 2017, 2018, 2019)
Specs & Features
-
Spring Rate:
- Front: 78 N/mm (8 kgf/mm)
- Rear: 59 N/mm (6 kgf/mm)
-
Vehicle Height (Highest - Lowest)
- Front: -36mm (0mm to -53mm)
- Rear: -41mm (-7mm to -51mm)
- Damping force adjustment: 30 steps
-
Upper mount: Spherical bearing
- Front: Normal
- Rear: Normal
-
Damper/Spring layout:
- Front: Coilover
- Rear: Coilover
-
“SRF” (Super Response Fluid) Exclusive newly developed Oil.
- Improved damper oil quality and viscosity.
- Improves characteristics of Damping force, achieving great handling performance.
- Suppresses temperature change caused by heat
-
“LVS” (Low Vibration Spring) Exclusive high-strength Spring.
- Manufactured with 210k grade high-strength wire rods.
- Adopted to shorten wire length and reduce weight.
- Improves Steering response.
-
“Upper Spring Retainer” Exclusive for HIPERMAX R
- Allow the damping axis and spring load lines to align coaxially
- Reducing of friction.
- Smoother damping.
Product Description
HKS's HIPERMAX R Series, born from nine years of innovation since the MAX IV SP, revolutionizes handling, traction, and installation ease. Its exclusive SRF oil ensures responsive damping, while the LVS springs offer unmatched sports driving performance. Features like the Spring Retainer and Dual PVS provide stability and tailored handling. With advancements like ADVANCED BUMP RUBBER and a Single Tube System, comfort and stability are maintained. The PNE Coating prevents rust, and the Pillow Upper Mount enhances precision. In essence, HKS's suspension system delivers optimal damping and traction, balancing comfort and performance flawlessly.
