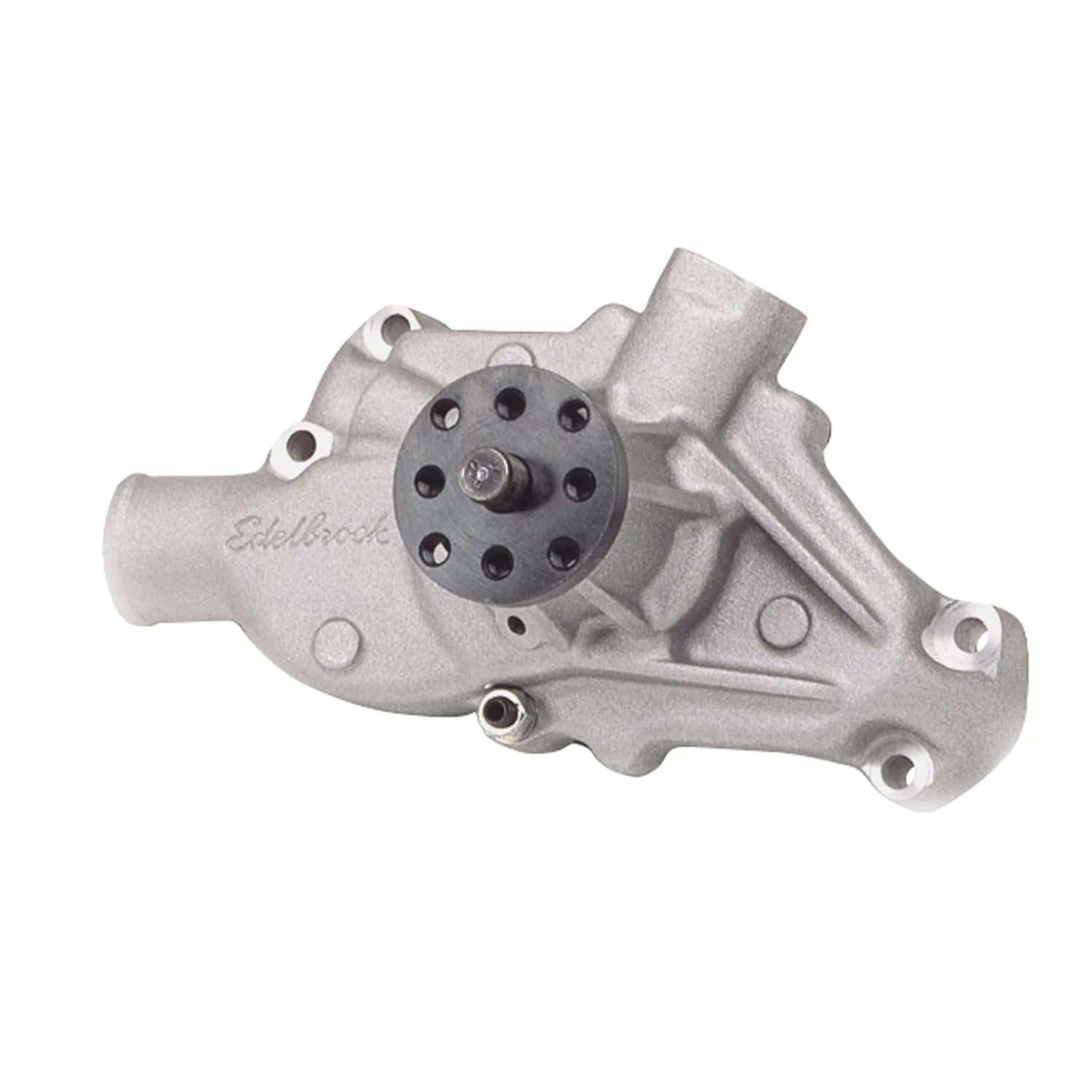

Edelbrock Water Pump Small Block Chevy (Short) Satin Finish 8810

Edelbrock #8010 water pump for 1955-68 SBC passenger cars, 1969-70 350 c.i.d, Corvettes and 1955-72 Light duty Trucks

Specs

• Application: Application Specific

• UPC: 00085347088102
• Thermostat And Housing Included: No
• Mounting Hole Quantity: 4

• Housing Material: Aluminum
• Impeller Material: Powdered Metal
• Installation Warnings: Yes
• Hub Hole Quantity: 6
• Fan Clutch Included: No
• Impeller Vane Quantity 6
• Includes Back Housing: Yes
• Related Cooling Fan Components: No
• Casting Number: 8810
• Warranty 12 Months
• Hub Height: 5.625 in
• Impeller Rotation: Standard
• Outlet Quantity: 1
• Pulley Included: No
• Water Pump Drive Type: V-Belt

Install Notes

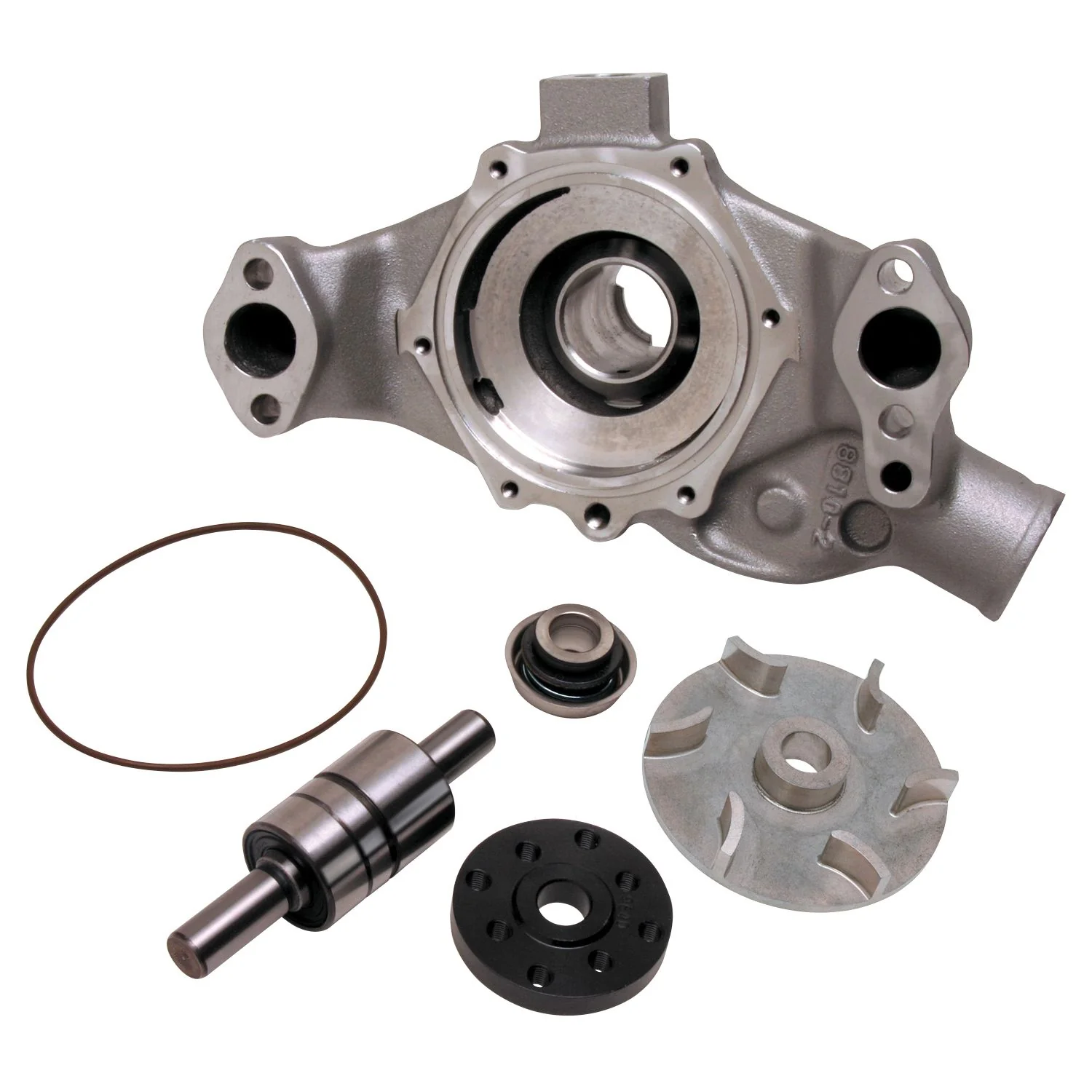

• 1969-'76 vehicles (original pump casting #3853692) require the included spacer to be placed between the pump and the alternator bracket; Some applications (original pump casting #364790) require power steering bracket spacer (included); Some vehicles (original pump casting #6263701) require a through hole instead of the threaded hole for the power steering. If this is the case, drill out the threads with a 3/8" drill bit; Check closely for any interference with drive belts; some filing for clearance may be necessary with some applications; Installation is the same as for original equipment water pumps. Consult service manual for specific procedures, if necessary; CAUTION: Be sure that fan bolts don't protrude through the hub so far that they hit the water pump housing; NOTE: Removal of backing plate is not recommended, as there are no user serviceable parts in the water pump. If backing plate is removed, use no sealer on O-ring equipped models, and use conventional gasket sealer (not RTV silicone) on gasketed models.
