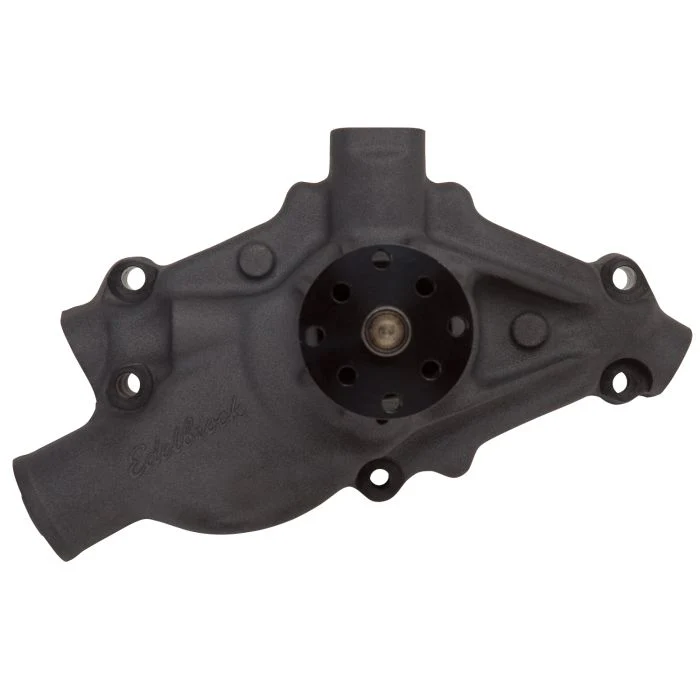

Edelbrock Competition Water Pump Small-Block (8 AN Pipe Aux Outlet) 8816

Edelbrock Competition Water Pump Small-Block (8 AN Pipe Aux Outlet) 8816

Edelbrock #8816 Water Pump SBC Competition -8 Outlet Holes Designed For Circle Track And Endurance Racing Applications

Specs
  • Application: Application Specific
  • Thermostat And Housing Included: No
  • Mounting Hole Quantity: 4
  • Housing Material: Aluminum
  • Impeller Material: Powdered Metal
  • Installation Warnings: Yes
  • Hub Hole Quantity: 6
  • Fan Clutch Included: No
  • Impeller Vane Quantity: 6
  • Includes Back Housing: Yes
  • Related Cooling Fan Components: No
  • Casting Number: 8816
  • Availability Note: Available to Order
  • Warranty: 12 Months
  • Hub Height: 5.813 in
  • Impeller Rotation: Standard
  • Outlet Quantity: 1
  • Pulley Included: No
  • Water Pump Drive Type: V-Belt

Install Notes

  • #8815 is a reverse rotation water pump for 1984-92 Corvettes with serpentine drive belt; Not for LT-1 Corvettes. Polished Aluminum Water Pump #8825 fits the same applications as #8815; #8881 is a reverse rotation water pump for 1987-93 passenger cars and light duty trucks with serpentine drive belt. Not for Corvettes EnduraShine Coated Aluminum Water Pump #88814 and Polished Aluminum Water Pump #8891 fit the same applications as #8881; #8882 is a short leg pump for 1955-'68 passenger cars, light duty trucks, and 1969-'70 Corvettes with AFTERMARKET serpentine belt pulleys (reverse rotation); This pump is ideal for street rods with aftermarket serpentine belt pulleys. Polished Aluminum Water Pump #8892 fits the same applications as #8882; Installation is the same as for original equipment water pumps. Consult service manual for specific procedures, if necessary; CAUTION: Be sure that fan bolts don't protrude through the hub so far that they hit the water pump housing; NOTE: Removal of backing plate is not recommended, as there are no user serviceable parts in the water pump. If backing plate is removed, use conventional gasket sealer (not RTV silicone) on gasket.

Description and Information

Edelbrock #8816 Water Pump SBC competition -8 outlet holes designed for circle track and endurance racing applications, they feature a revised impeller entry, a hard black anodized finish and .100" thicker rear cover for greater durability. Auxiliary water outlets ease fabrication of custom plumbing systems and auxiliary fittings are available as an or npt. These water pump provide maximum cooling with equal distribution to both sides of the block within 1%. By eliminating hot spots, the engine produces optimum power from every cylinder without detonation and pre-ignition. Other features include billet steel hub and heavy-duty ball/roller bearings.
