BD Xtrude Transmission Cooler Dodge Ram 1500 / 2500 / 3500 (94-16) Complete Kit 1/2 Lines w/ Fan - 1030606-1/2
HomeStore

BD Xtrude Transmission Cooler Dodge Ram 1500 / 2500 / 3500 (94-16) Complete Kit 1/2 Lines w/ Fan - 1030606-1/2

BD Xtrude Transmission Cooler Dodge Ram 1500 / 2500 / 3500 (94-16) Complete Kit 1/2 Lines w/ Fan - 1030606-1/2

Fitment Information

  • Dodge Ram 1500 3.7L / 4.7L / 5.7L / 8.3L (2004, 2005, 2006)
  • Dodge Ram 2500 5.2L (1994, 1995, 1996, 1997)
  • Dodge Ram 2500 5.7L (2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016)
  • Dodge Ram 2500 5.9L (1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008)
  • Dodge Ram 2500 6.4L (2014, 2015, 2016)
  • Dodge Ram 2500 6.7L (2007, 2008, 2009, 2010, 2012, 2013, 2014, 2015, 2016)
  • Dodge Ram 2500 8.0L (1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003)
  • Dodge 3500 5.7L (2003, 2004, 2005, 2006, 2007, 2008, 2009, 2011, 2012, 2013, 2014, 2015, 2016)
  • Dodge 3500 5.9L (1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007)
  • Dodge 3500 6.4L (2014, 2015, 2016)
  • Dodge 3500 6.7L (2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016))
  • Dodge 3500 8.0L (1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003)

Note

  • Intended to be used in conjunction with factory transmission coolers and not as stand-alone units

Specs & Features

  • 22% more cooling over other designs
  • 200 Micro Extruded passages
  • Large surface area to transfer heat for external air flow cooling
  • Turbulent oil flow design promotes a more complete cooling
  • Large 5/8-inch ports prevents inlet/outlet restriction
  • Furnace brazed rails have been tested to 300psi of pressure
  • Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
  • 33,930 BTU/HR and in excess of 30,000 GVW!
  • Kits complete with all fittings, clamps, hoses and hardware
  • Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
  • The pre-wired loomed harness with fuse and relay comes with plug-in connectors
  • Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
  • Ford 5R110/6R140 - 1/2-inch Cooler Lines)

Warranty

  • Parts:  24 months  or 24, 000 Miles

    Product Description

    Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.

        $746.95
        BD Xtrude Transmission Cooler Dodge Ram 1500 / 2500 / 3500 (94-16) Complete Kit 1/2 Lines w/ Fan - 1030606-1/2—
        $746.95

        More Images

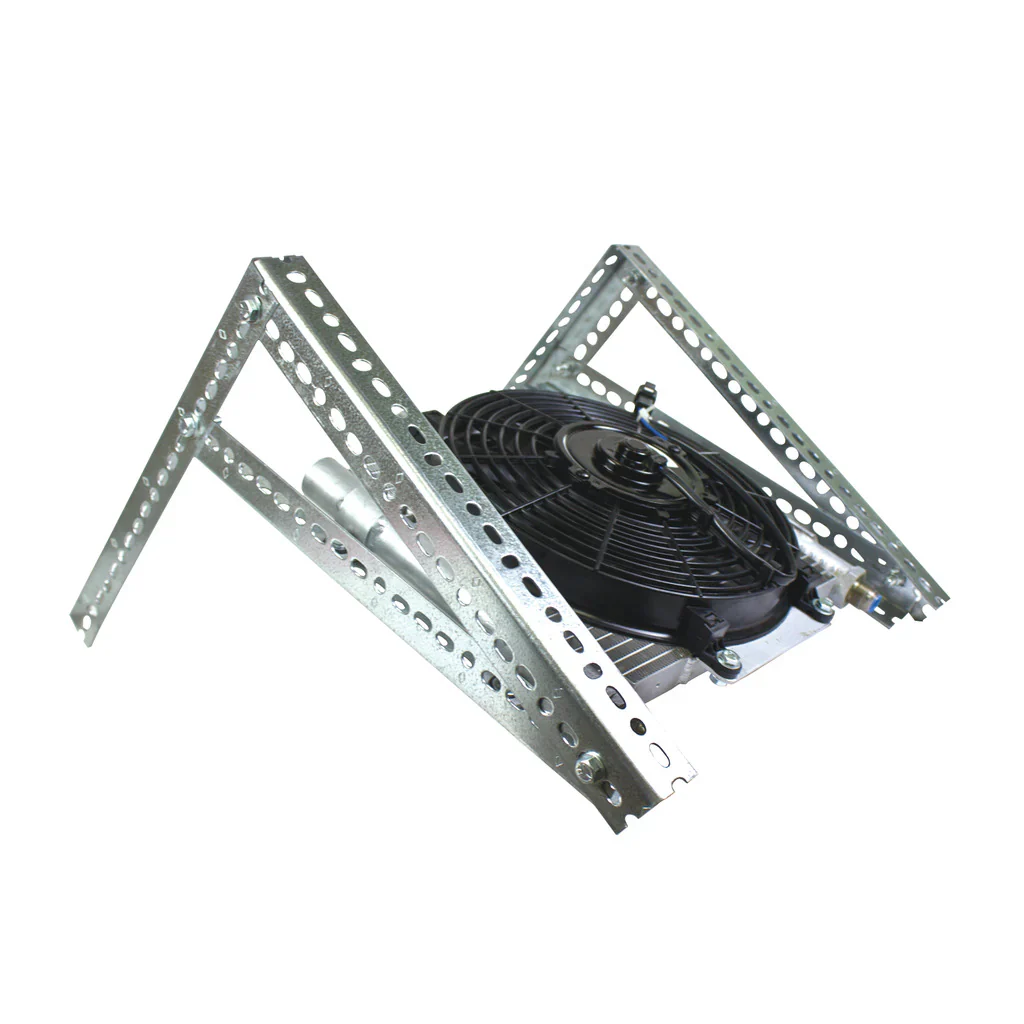

        BD Xtrude Transmission Cooler Dodge Ram 1500 / 2500 / 3500 (94-16) Complete Kit 1/2 Lines w/ Fan - 1030606-1/2 - Image 2
